How to Properly Set Up Loop Protection on Business Servers

Understanding Network and Server Loops in Business IT

For growing businesses and educational institutions across Pakistan, maintaining a reliable internal network is critical to daily operations. Whether you are running local file servers, hosting database applications, or managing a busy office network in Khuzdar, unexpected downtime can halt productivity entirely. One of the most common yet overlooked causes of sudden network paralysis is a switching or routing loop. When data packets circulate endlessly between interconnected hardware ports or server interfaces, bandwidth is completely choked, leading to frozen applications and inaccessible servers.

At netbit, our engineers frequently encounter network stalls caused by improper physical cabling or unconfigured redundant links. Implementing proper loop protection mechanisms ensures that your enterprise hardware remains stable, responsive, and available to the team members who rely on it every day.

What Causes Network Loops on Server Connections?

Network loops typically happen when there is more than one active path between two points in a local area network (LAN). This often occurs accidentally during office expansions or hardware upgrades:

• Connecting two switch ports together with a single patch cable by mistake.
• Misconfiguring redundant network interface cards (NICs) on high-availability enterprise servers.
• Improperly bridging wireless access points or long-range links (such as LiteBeam or PowerBeam setups) back into the core switch.
• Failing to enable spanning tree protocols on managed enterprise network switches.

When a loop occurs, broadcast traffic multiplies exponentially in a fraction of a second. This phenomenon, known as a broadcast storm, consumes 100% of your network link capacity, locking out legitimate user traffic and making servers appear offline.

Step-by-Step Guide to Configuring Loop Protection

Preventing network and server loops requires a combination of smart physical cable management and proper software-level configuration on your core networking hardware. Follow these essential steps to secure your office infrastructure.

1. Audit Your Physical Cabling and Rack Layout

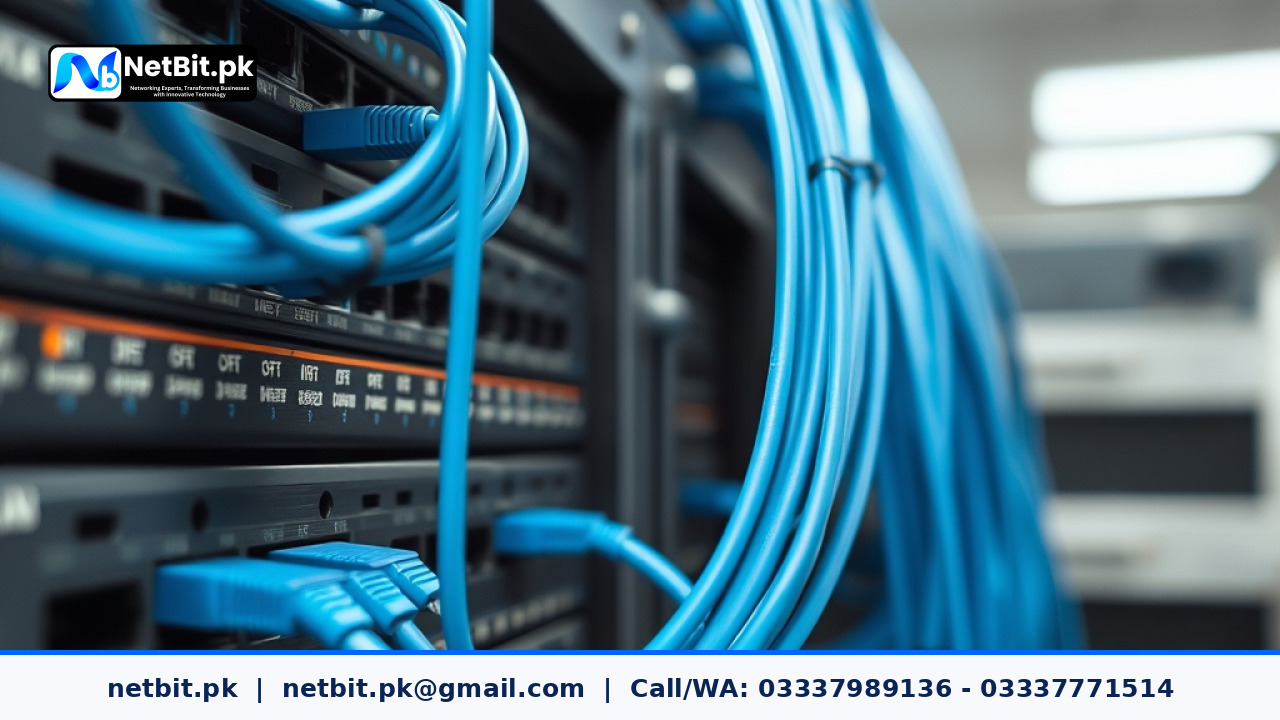

Before modifying any software settings, inspect your physical data racks. Ensure that all Cat6 cables, patch panels, and fiber patch cords are clearly labeled and logically organized. Avoid connecting multiple redundant cables between switches unless you have explicitly configured link aggregation (such as LACP) or spanning tree protocols.

2. Enable Spanning Tree Protocol (STP) on Managed Switches

Most commercial-grade network switches support Spanning Tree Protocol (STP), Rapid STP (RSTP), or Multiple STP (MSTP). These protocols automatically detect redundant paths in your network topology and place backup ports into a blocking state. If the primary path fails, the backup path is automatically activated without creating an infinite loop.

1. Log into your core network switch management interface using a secure browser session or command-line utility.
2. Navigate to the Spanning Tree or Layer 2 settings menu.
3. Enable RSTP (Rapid Spanning Tree Protocol) globally across all active VLANs.
4. Configure edge ports (where workstations and servers connect) with PortFast or Edge Port settings so they transition immediately to a forwarding state without triggering topology recalculations.
5. Save your configuration changes to the startup-config file.

3. Configure BPDU Guard on Edge Ports

Bridge Protocol Data Unit (BPDU) Guard is a vital security feature that protects your network against rogue switches or accidental user loops. When enabled on switch ports connected to end-user workstations or servers, BPDU Guard immediately shuts down any port that receives unexpected STP control frames, isolating the problem before it brings down the entire server room.

4. Implement Proper NIC Teaming Policies on Business Servers

When configuring dual network interface cards on business servers for redundancy, ensure your teaming software or operating system bonding driver is set to the correct mode. Active-passive configurations or properly negotiated IEEE 802.3ad LACP trunking prevents loop conditions that can occur with basic switch-independent load balancing modes.

Frequently Asked Questions About Server and Network Loops

How do I know if my server is experiencing a network loop?

Symptoms include extremely sluggish server response times, inability to ping the server gateway, rapidly blinking link lights on network switches even when office staff are away, and sudden drops in local network throughput.

Can a software application cause a network loop?

Applications themselves do not create physical loops, but poorly configured virtual machines, virtual switches in hypervisors, or bridged network adapters inside virtualized environments can duplicate and misroute network frames if virtual networking rules are misconfigured.
