CCTV Security News: Standardizing IP Camera Bitrates in Commercial Surveillance

Introduction: The Evolving Landscape of Commercial CCTV in Pakistan

Modern commercial enterprises across Pakistan, from retail shops in Karachi to educational institutions and corporate offices in Khuzdar, are rapidly transitioning from legacy analog CCTV systems to high-definition IP (Internet Protocol) surveillance networks. While IP cameras deliver superior video clarity, wide dynamic range, and digital zoom capabilities, they also introduce significant demands on network bandwidth and Network Video Recorder (NVR) storage capacity.

In recent technical field reviews, network administrators and business owners frequently encounter a common issue: hard drives filling up within days instead of weeks, alongside frequent camera disconnects or choppy live feeds. These operational issues stem directly from unoptimized video bitrate settings. Standardizing IP camera bitrates is now an essential operational requirement for any organization looking to maintain long-term video archives without incurring excessive storage hardware costs.

Understanding Camera Bitrates: CBR vs. VBR in Video Surveillance

To establish an efficient commercial surveillance network, business owners and IT personnel must understand how video data stream configurations work. The video bitrate represents the amount of data processed per second, measured in Megabits per Second (Mbps) or Kilobits per Second (Kbps).

There are two primary bitrate management modes available on modern IP cameras and NVRs:

• Constant Bitrate (CBR): Under CBR, the camera transmits data at a fixed rate regardless of movement or activity in the video frame. While CBR ensures predictable bandwidth consumption, it wastes immense storage during periods of inactivity (such as overnight office hours).
• Variable Bitrate (VBR): VBR dynamically adjusts the data transmission rate based on visual complexity and motion. When a hallway is empty, the camera lowers its bitrate to conserve space; when activity occurs, the bitrate increases automatically to capture crisp details.

For most commercial properties in Pakistan, configuring cameras with VBR coupled with a maximum bitrate cap offers the optimal balance between image quality and storage retention.

Key Technical Standards for Bitrate Optimization

Standardizing your surveillance setup requires tuning several interrelated video parameters across all deployed cameras. Implementing the following industry standards will significantly optimize your network infrastructure.

1. Frame Rate Adjustment (FPS) for Commercial Spaces

A common mistake in CCTV deployment is running every camera at 30 Frames Per Second (FPS). While smooth motion is essential for casinos or high-speed traffic monitoring, standard commercial spaces (such as retail outlets, warehouses, and office entrances) perform exceptionally well at 15 to 20 FPS. Lowering the frame rate from 30 FPS to 15 FPS reduces bandwidth and storage consumption by up to 40% with virtually no perceptible loss in security coverage.

2. Implementing H.265+ Compression Protocols

Legacy systems rely heavily on H.264 compression codecs. Modern IP surveillance cameras support advanced codecs such as H.265 and proprietary smart codecs (e.g., H.265+ or Ultra H.265). Upgrading camera encoding to H.265 reduces storage requirements by approximately 50% compared to H.264 while preserving sharp image details for identification purposes.

3. Recommended Bitrate Target Settings

When setting up main video streams on business NVRs, applying standard target bitrate caps based on sensor resolution ensures continuous reliability:

• 2MP (1080p Resolution): Target 1,500 Kbps to 2,048 Kbps (VBR) at 15 FPS.
• 4MP (2K Resolution): Target 3,000 Kbps to 4,096 Kbps (VBR) at 15 FPS.
• 8MP (4K Resolution): Target 6,000 Kbps to 8,192 Kbps (VBR) at 15 FPS.

Step-by-Step Guide: How to Configure IP Camera Bitrates on Your NVR

Configuring proper bitrate profiles across your IP camera setup can be executed directly through your NVR web management interface or dedicated desktop software. Follow these practical steps:

1. Access the NVR Management Portal: Open a web browser on your local network workstation and log in to your NVR using administrative credentials.
2. Navigate to Storage or Video Encoding Settings: Locate the Camera Configuration or Video/Audio Settings menu.
3. Select Main Stream Settings: Choose the specific camera channel you wish to adjust. Ensure you are modifying the Main Stream (used for full-resolution recording) rather than the Sub Stream (used for multi-screen live viewing).
4. Set Bitrate Type to VBR: Change the stream type from CBR to VBR to enable dynamic bandwidth management.
5. Adjust Maximum Bitrate Limits: Input the recommended upper bitrate cap matching your camera resolution (e.g., 2048 Kbps for 1080p).
6. Configure Sub Streams for Remote Viewing: Set the Sub Stream resolution to CIF or D1 with a bitrate cap between 256 Kbps and 512 Kbps. This ensures smooth remote playback on mobile devices over local 3G/4G networks in Pakistan.
7. Save and Apply to All Channels: Save the configuration and copy these standardized settings across all matching cameras in your network.

Common CCTV Storage Bottlenecks and How to Avoid Them

Optimizing software settings on your NVR is only half the solution. Physical network infrastructure plays a crucial role in maintaining uninterrupted security coverage:

• Avoid Desktop Hard Drives: Always install dedicated surveillance-grade hard drives (such as WD Purple or Seagate SkyHawk). Standard desktop hard drives are not built for 24/7 continuous video write operations and fail prematurely under heavy surveillance loads.

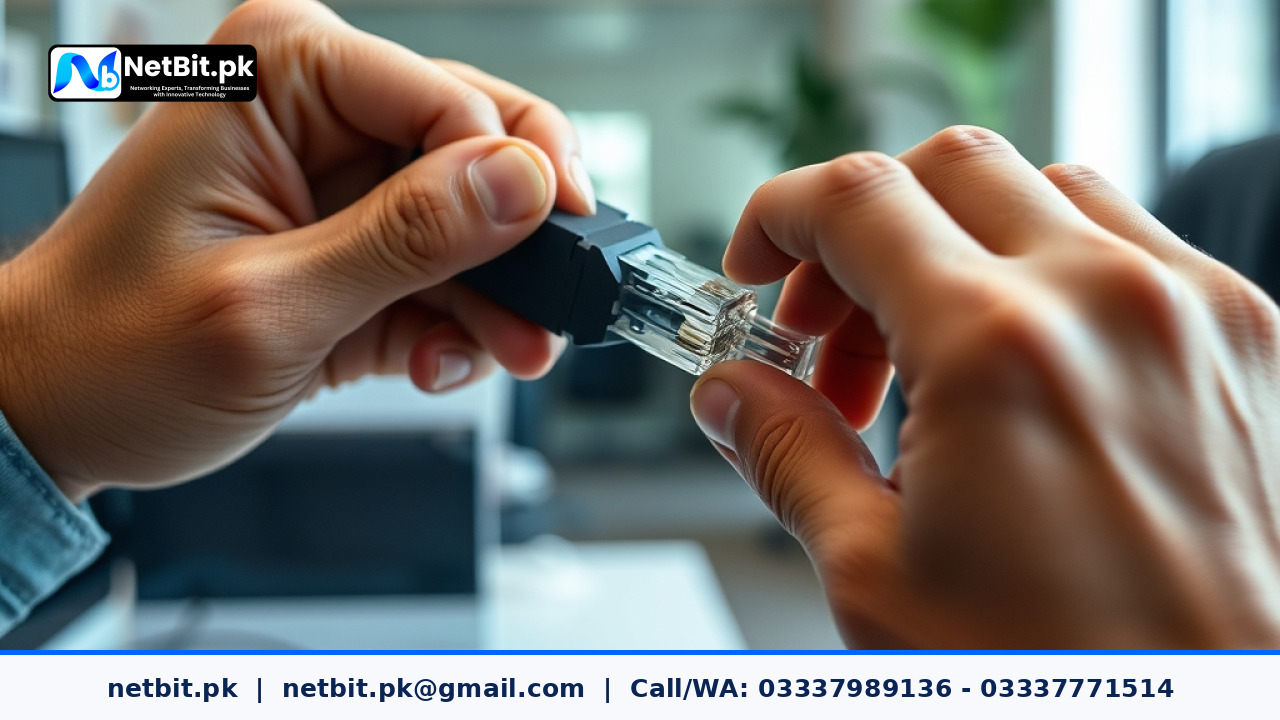

• Use Shielded Cat6 Network Cabling: Ensure IP cameras connect via solid copper Cat6 network cables with proper RJ45 terminations to prevent packet loss and frame dropping caused by electrical interference.
• Calculate PoE Switch Power Budgets: Verify that your Power over Ethernet (PoE) switches have sufficient total power budget to supply all connected cameras, especially during night hours when IR illuminators activate and increase power draw.

Frequently Asked Questions (FAQs)

What is the difference between Main Stream and Sub Stream in CCTV systems?

Main Stream provides high-resolution, high-bitrate video used primary for direct recording onto NVR storage drives. Sub Stream offers a lower resolution, lower-bitrate video feed optimized for multi-camera live views and remote monitoring on smartphones or slow internet connections.

Will lowering the camera bitrate decrease video clarity during night hours?

If bitrate is capped too low, pixelation can occur in dark scenes due to digital noise. However, keeping target bitrates within the recommended ranges (e.g., 2 Mbps for 1080p on VBR) ensures clear night footage while preventing unnecessary storage consumption during daytime visual static.

How many days of video can I store on a 4TB HDD with 8 IP cameras?

Using 1080p cameras running at 15 FPS with H.265 compression and a 2 Mbps target bitrate, 8 cameras consume roughly 160 GB per day total. A 4TB storage drive will yield approximately 22 to 25 full days of continuous 24/7 video recording.
